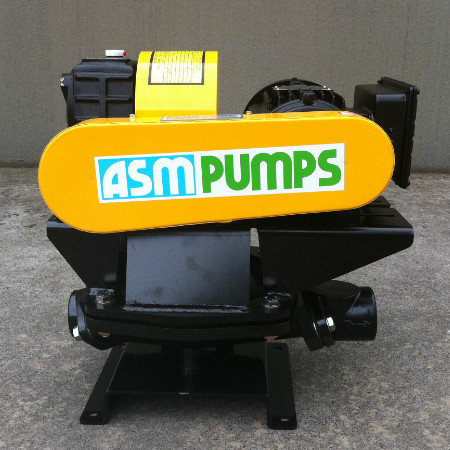

D38 1½" (40NB)

  PORT SIZE: 1 1/2" BSPF

  MAX FLOW: 60 L/min

  MAX SUCTION LIFT: 6m

  MAX DISCHARGE HEAD: 6m

  MAX SOLID SIZE: 25mm sphere

  CASTINGS: Aluminium

  Options: Cast Iron, bronze, stainless steels

  DIAPHRAGM : Nitrile

  Options: Neoprene, EPDM, viton, teflon interface

  VALVES: nitrile flap with stainless steel seats

  Options: EPDM, viton, polyurethane

  MOTORS: DS .75kw 240v single phase IP55 , DT .75kw 415v 3 phase IP66

  DE 4Hp Petrol engine

  Options: increased safety Exe & Exd, 12V & 24V DC,  air motor, hydraulic motor

  SOME APPLICATIONS: transfer, dewatering, oil skimming, oil/water separation,

  waste treatment , spill clean up, bilge pumping



  DOWNLOADS:

  D38 PARTS LIST

  D SERIES INSTALLATION INSTRUCTIONS

  DIAPHRAGM FITTING INSTRUCTIONS
